Product Overview

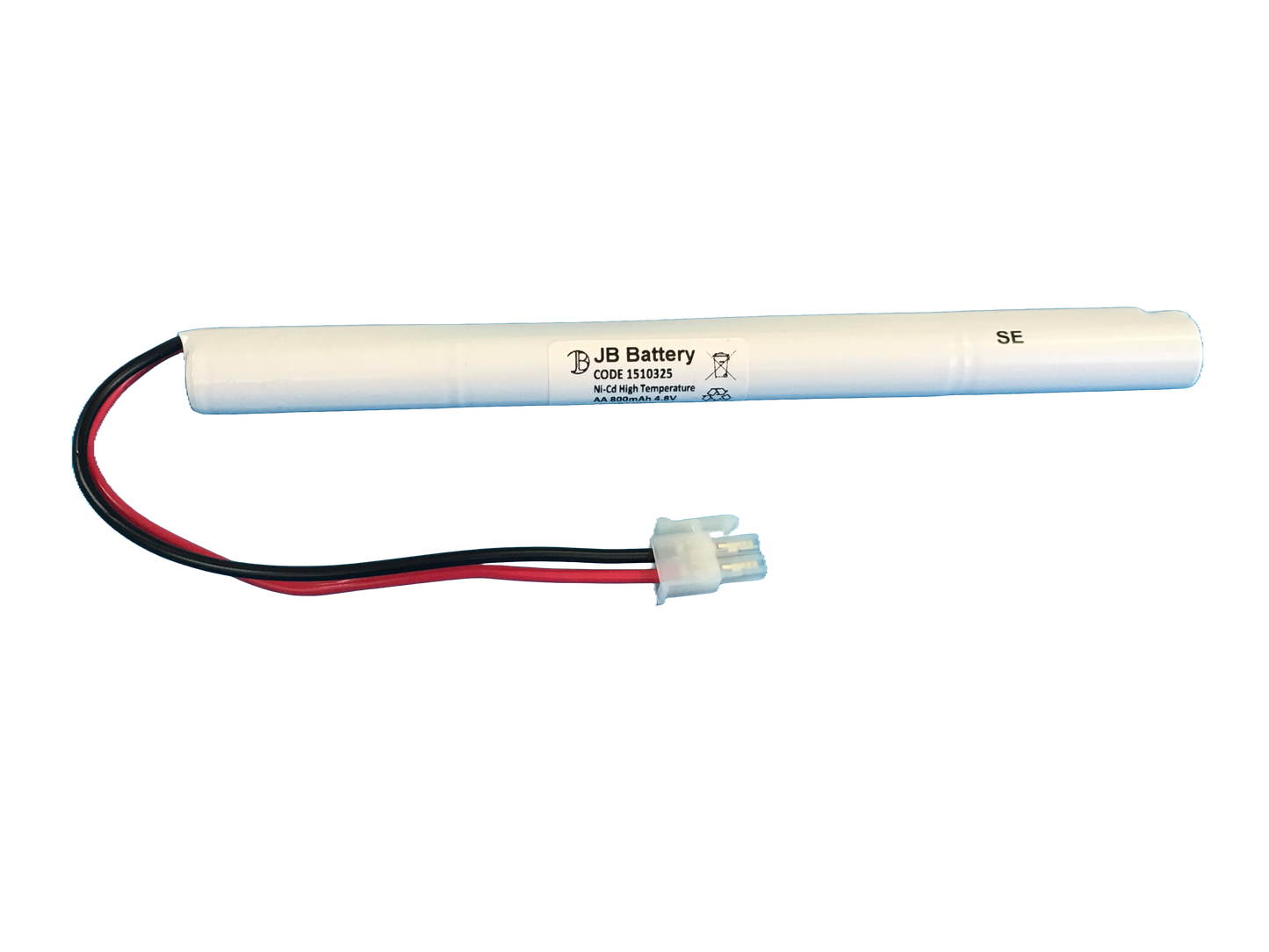

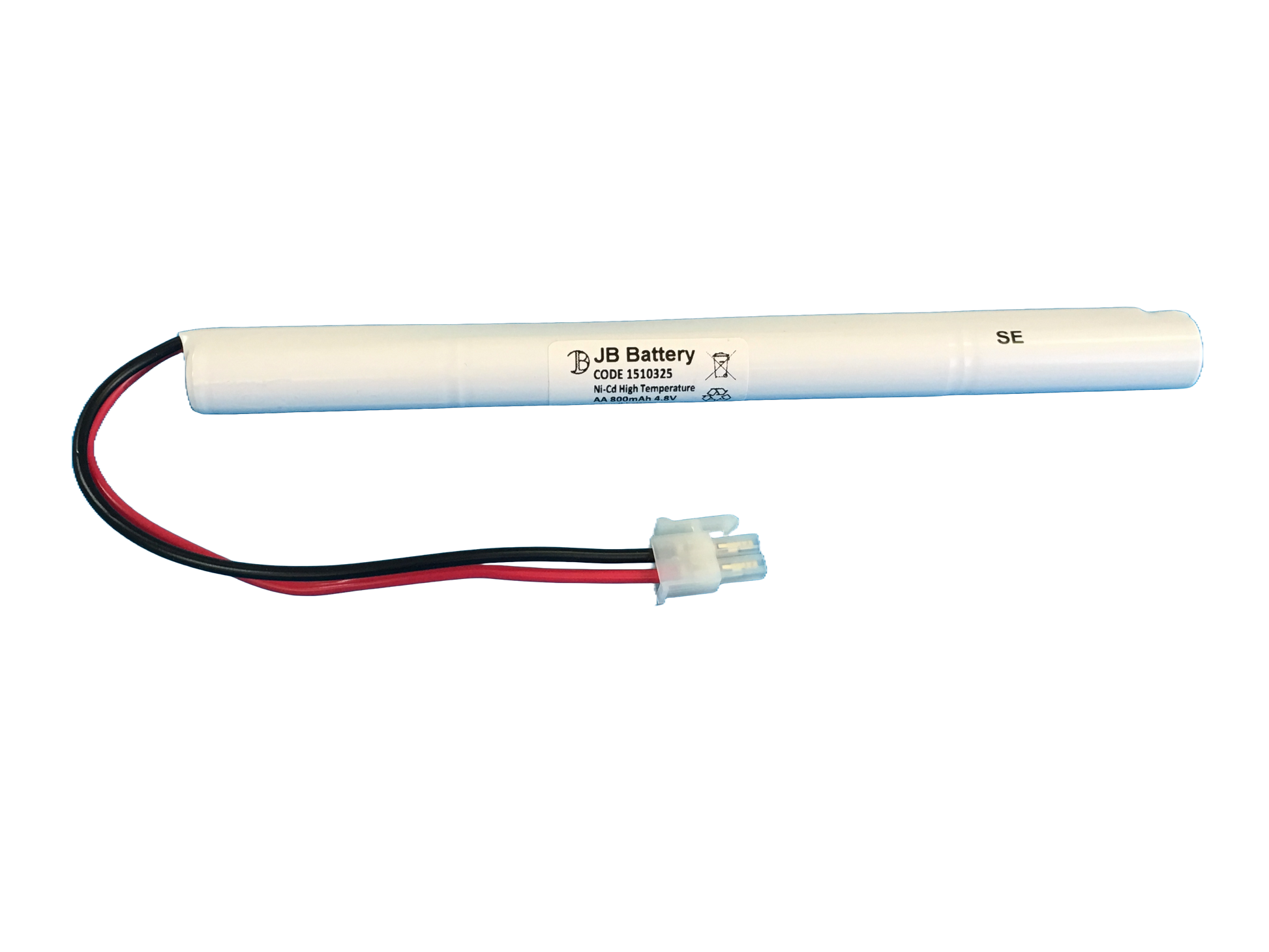

JB Battery battery pack—engineered for reliability in emergency lighting applications. Built with high-grade cells and spot-welded nickel tabs for low resistance, this pack delivers stable output, long cycle life, and consistent performance across Australian and New Zealand conditions.
Specifications
| Parameter | Value |
|---|---|
| Chemistry | Ni-Cd |
| Nominal Voltage | 4.8V |
| Capacity | 800mAh |
| Configuration | 4x AA Cell Stick Pack |
| Connector | JST-VHR-2N |
| Bracket | - |
| Dimensions (L×W×H) | 202mm x 14.5mm x 14.5mm |
| Operating Temp | −10°C to +50°C |
| Compliance | IEC61951 | UN38.3 (where applicable) |
| Warranty | 1 Year JB local support (AU/NZ) |
Downloads
- 📄 Datasheet (PDF)
- 🧪 MSDS / Safety Information (PDF)
Product Matching – Emergency Lighting Brands
Clevertronics - 1510325
