Product Overview

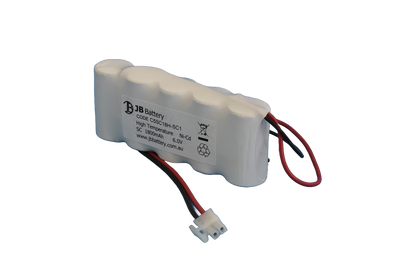

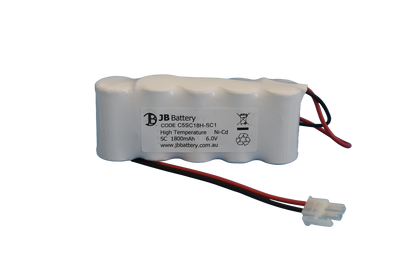

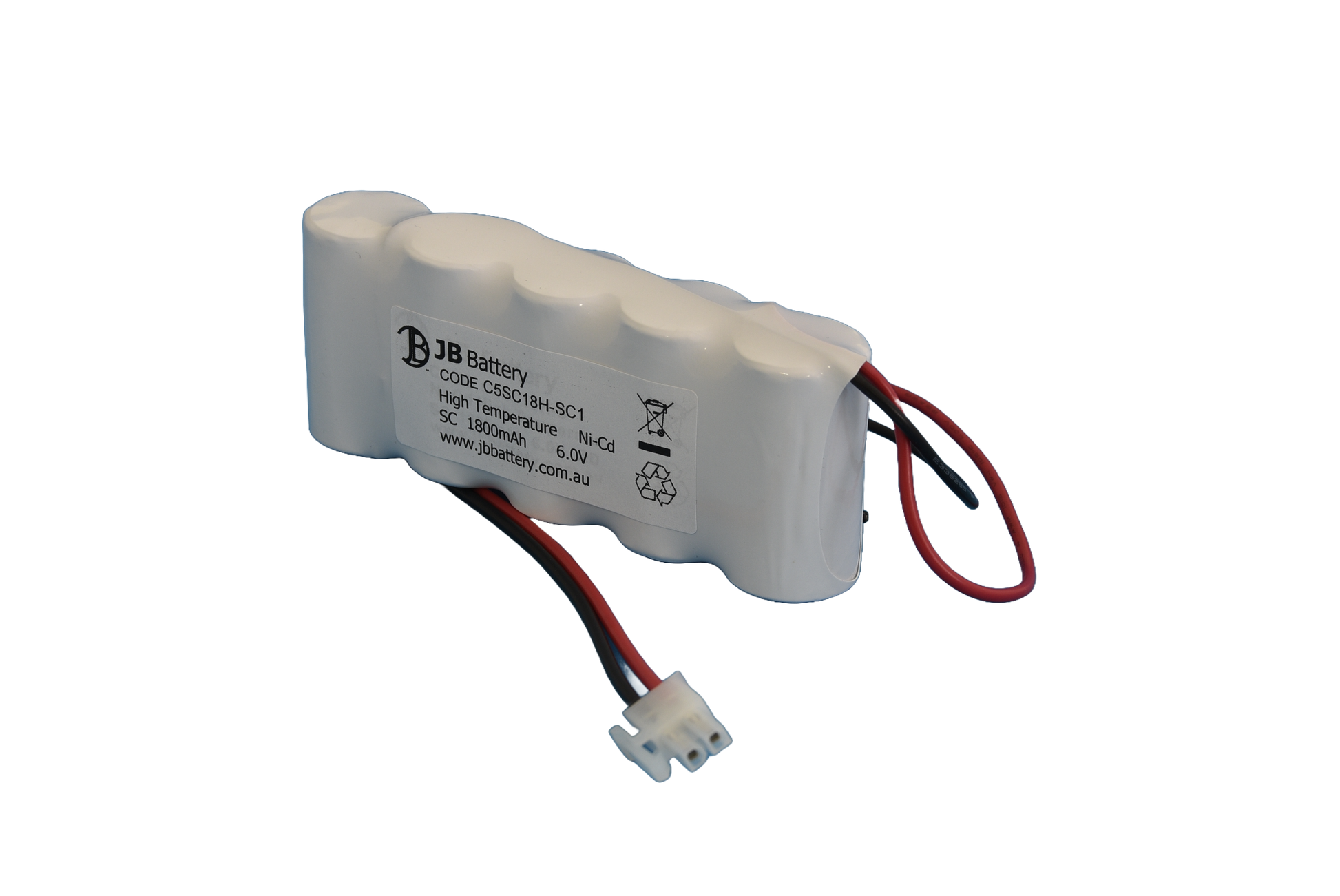

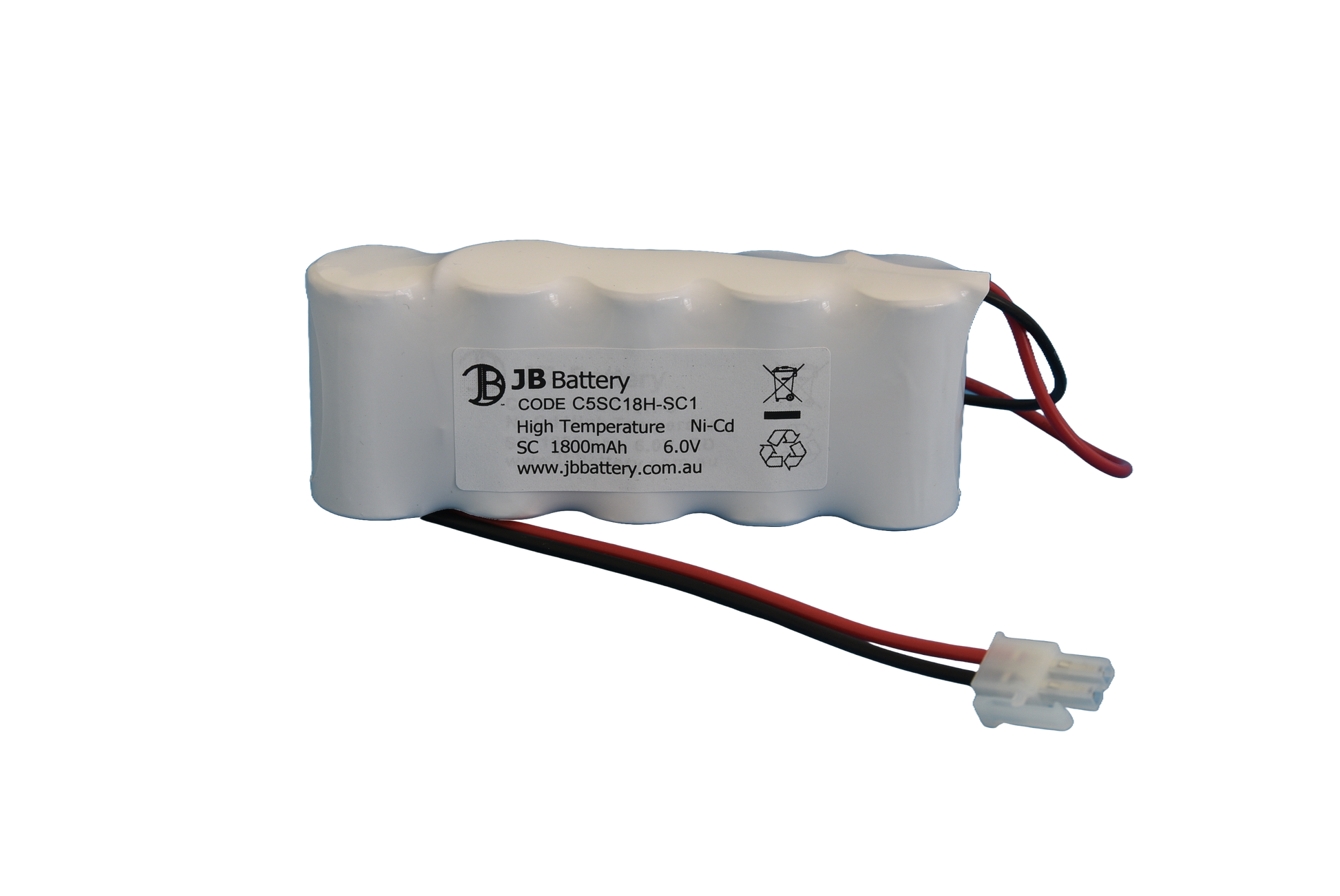

JB Battery battery pack—engineered for reliability in emergency lighting applications. Built with high-grade cells and spot-welded nickel tabs for low resistance, this pack delivers stable output, long cycle life, and consistent performance across Australian and New Zealand conditions.
Specifications
| Parameter | Value |
|---|---|
| Chemistry | Ni-Cd |
| Nominal Voltage | 6.0V |
| Capacity | 1800mAh |
| Configuration | 5x Sub C Cell Side by Side Pack |
| Connector | JST-VHR-2N |
| Bracket | - |
| Dimensions (L×W×H) | 111mm x 42.9mm x 22.2mm |
| Operating Temp | −10°C to +50°C |
| Compliance | IEC61951 | UN38.3 (where applicable) |
| Warranty | 1 Year JB local support (AU/NZ) |
