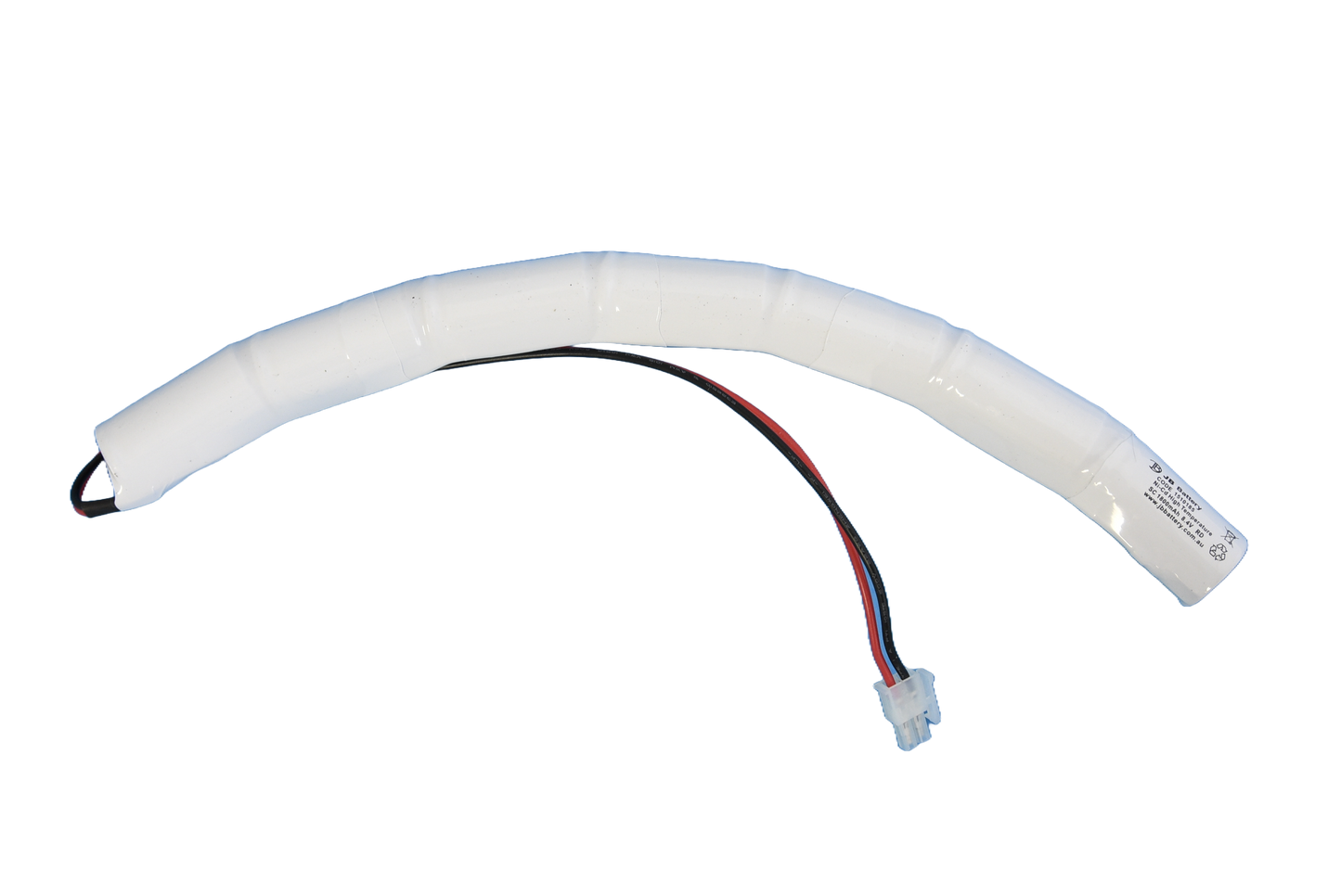

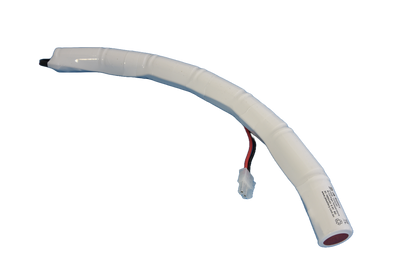

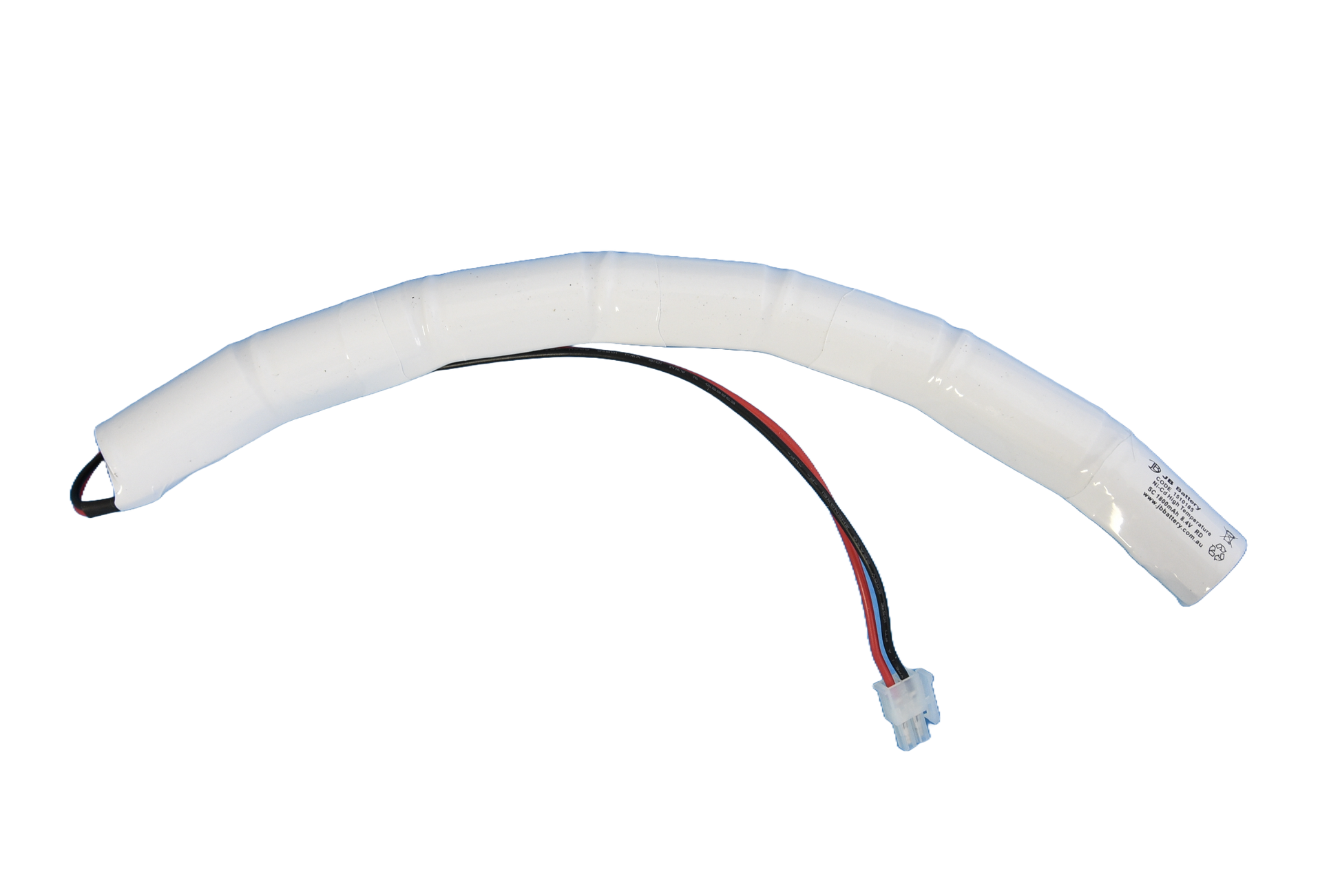

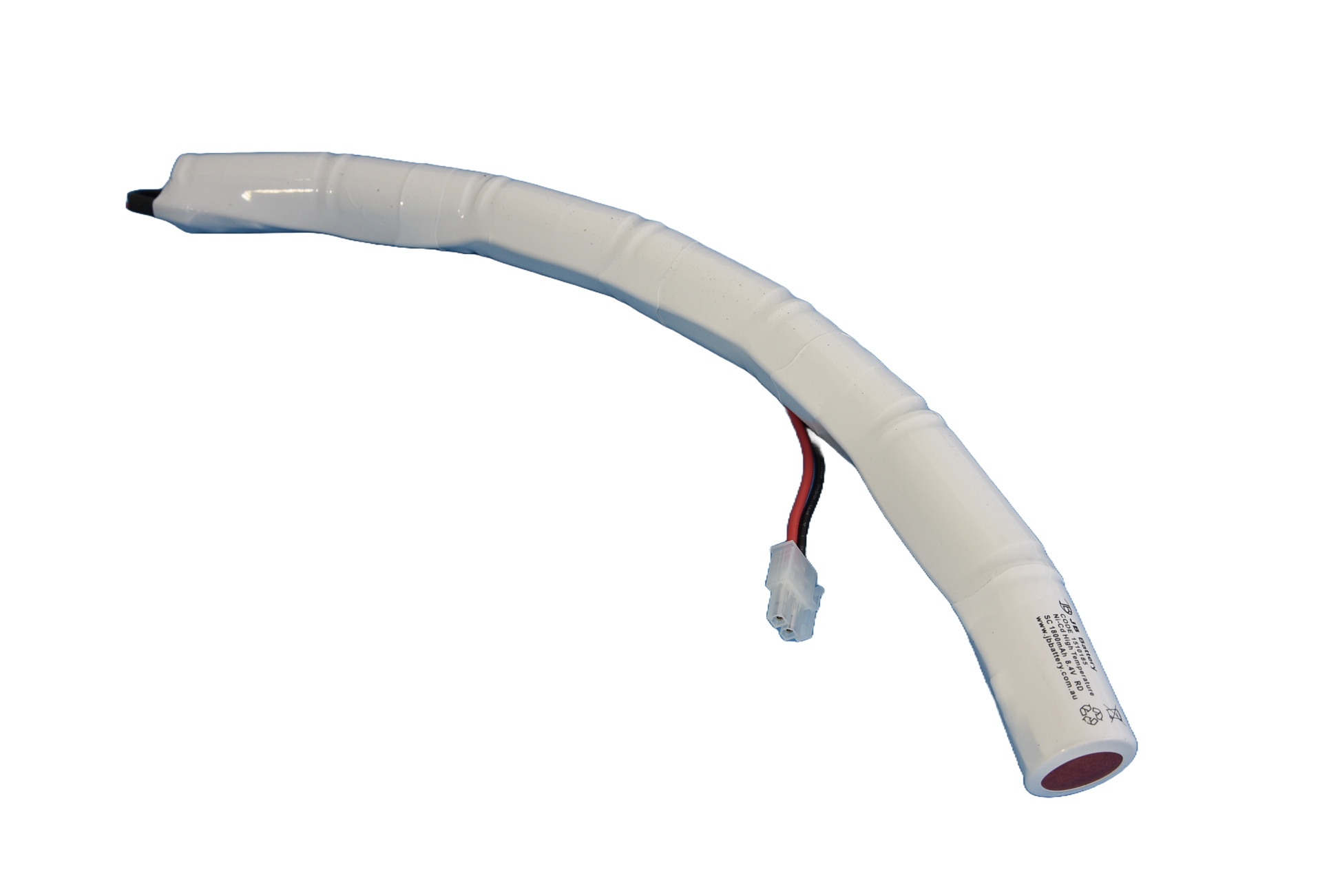

Emergency Light Battery C7SC18H-CC1 – Ni-CD High Temperature 8.4V 1.8Ah SC Curve With Connector – Suit Clevertronics
Emergency Light Battery C7SC18H-CC1 – Ni-CD High Temperature 8.4V 1.8Ah SC Curve With Connector – Suit Clevertronics
Regular price
$63.15 AUD
Regular price
Sale price
$63.15 AUD
Taxes included.
Quantity
Couldn't load pickup availability
Specifications · Downloads · Brand Matching
JB Battery battery pack—engineered for reliability in emergency lighting applications. Built with high-grade cells and spot-welded nickel tabs for low resistance, this pack delivers stable output, long cycle life, and consistent performance across Australian and New Zealand conditions.
Specifications
| Parameter | Value |
|---|---|
| Chemistry | Ni-Cd |
| Nominal Voltage | 8.4V |
| Capacity | 1800mAh |
| Configuration | 7x D Cell Curved Pack |
| Connector | JST-VHR-2N |
| Bracket | - |
| Dimensions (L×W×H) | 290mm x 45mm x 34.2mm |
| Operating Temp | −10°C to +50°C |
| Compliance | IEC62620 | UN38.3 (where applicable) |
| Warranty | 1 Year JB local support (AU/NZ) |
Downloads
- 📄 Datasheet (PDF)
- 🧪 MSDS / Safety Information (PDF)
Product Matching – Emergency Lighting Brands
Coming Soon
