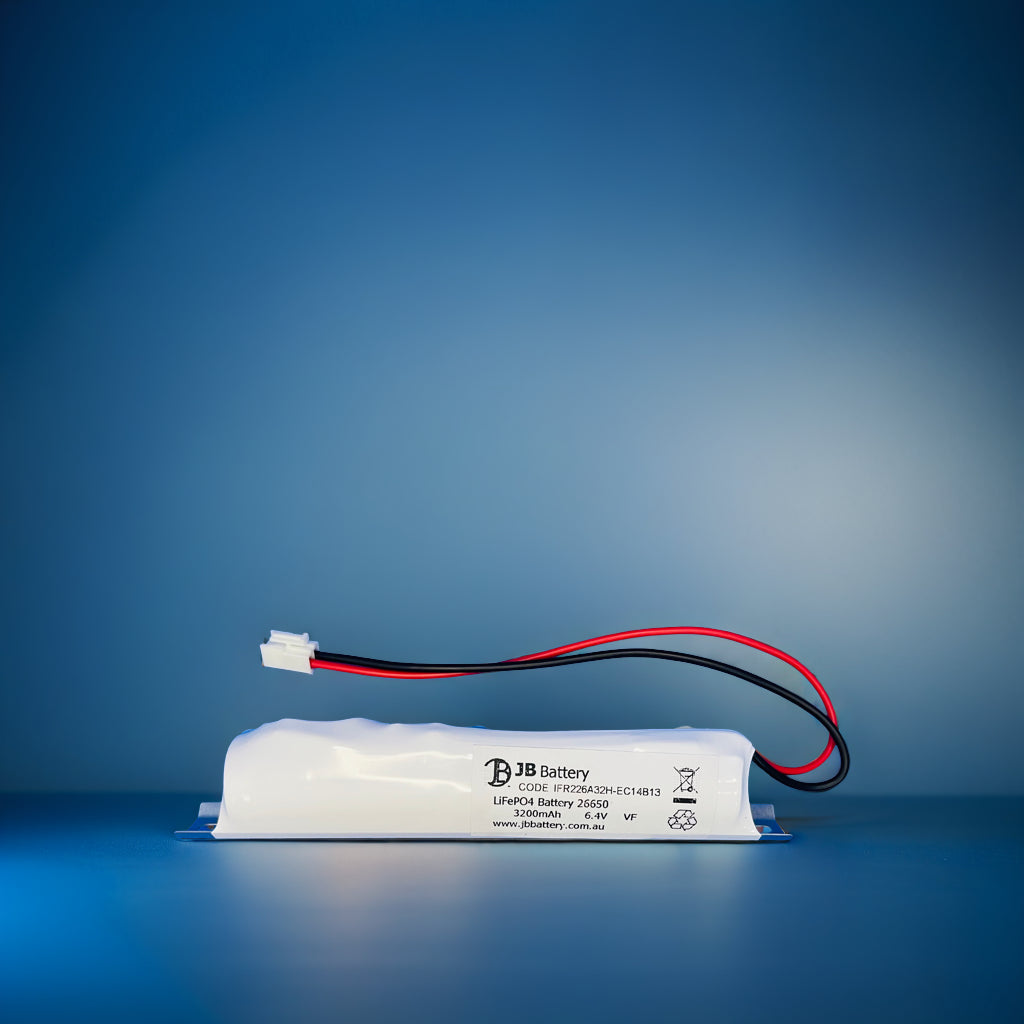

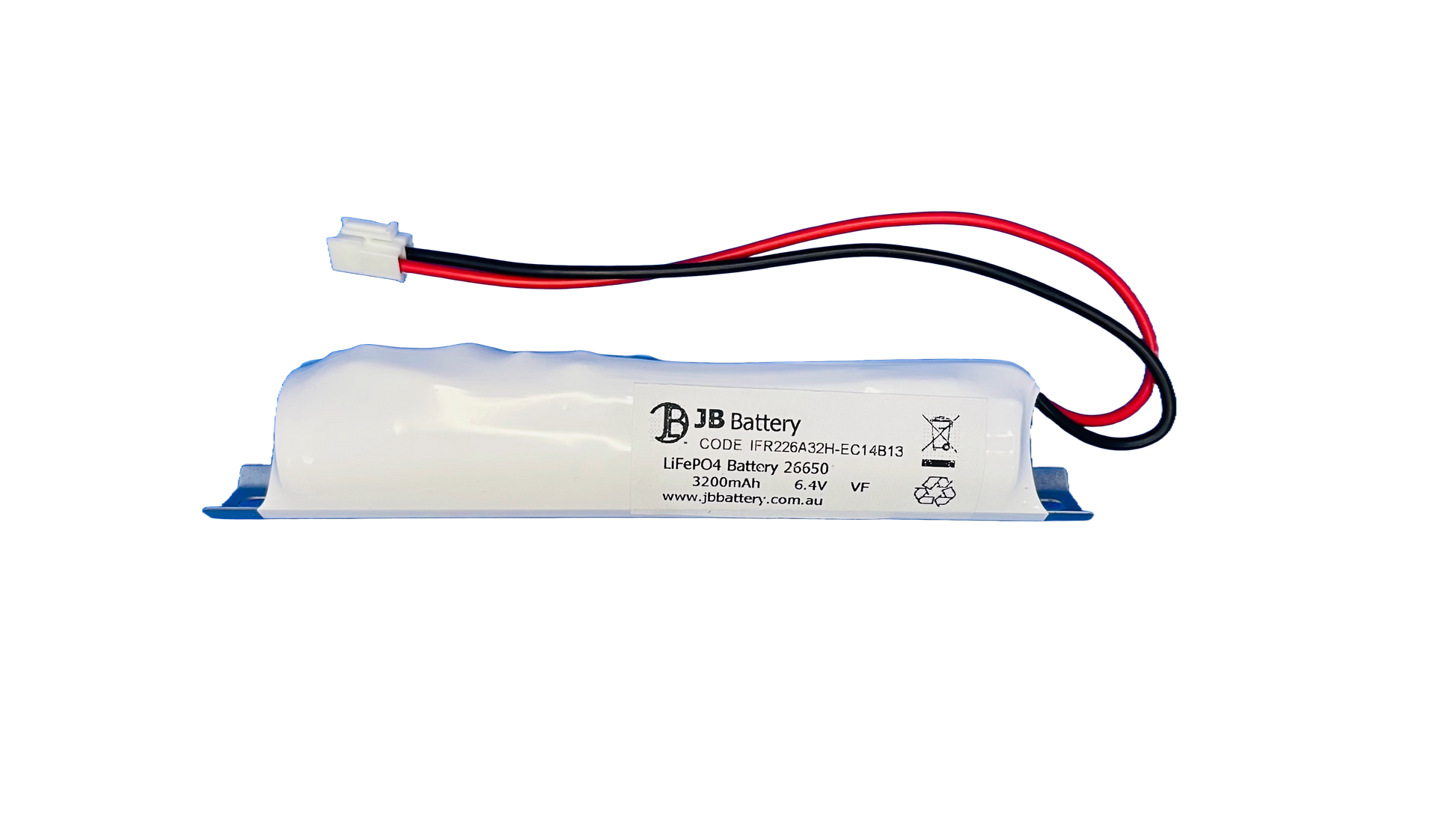

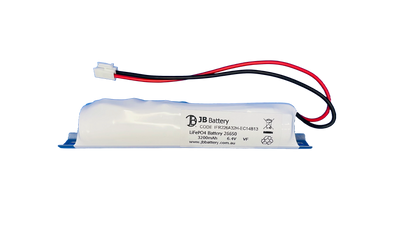

Emergency Light Battery IFR226A32H-EC14B13 – Li-ion LiFePO4 6.4V 3.2Ah 26650 Stick 2S1P with Connector and Bracket - Suit Clevertronics
Emergency Light Battery IFR226A32H-EC14B13 – Li-ion LiFePO4 6.4V 3.2Ah 26650 Stick 2S1P with Connector and Bracket - Suit Clevertronics
Regular price
$53.10 AUD
Regular price
Sale price
$53.10 AUD
Taxes included.
Quantity
Couldn't load pickup availability
Specifications · Downloads · Brand Matching
JB Battery battery pack—engineered for reliability in emergency lighting applications. Built with high-grade cells and spot-welded nickel tabs for low resistance, this pack delivers stable output, long cycle life, and consistent performance across Australian and New Zealand conditions.
Specifications
| Parameter | Value |
|---|---|
| Chemistry | LiFePO4 |
| Nominal Voltage | 6.4V |
| Capacity | 3200mAh |
| Configuration | 3x 26650 Cell Stick (2S1P) |
| Connector | JST-VHR-2N |
| Bracket | Metal Plate 165mm x 21mm |
| Dimensions (L×W×H) | 165mm x 26mm x 26mm |
| Operating Temp | −10°C to +50°C |
| Compliance | IEC62620 | UN38.3 (where applicable) |
| Warranty | 1 Year JB local support (AU/NZ) |
Downloads
- 📄 Datasheet (PDF)
- 🧪 MSDS / Safety Information (PDF)
Product Matching – Emergency Lighting Brands
Coming Soon
